Beiben 2534 RHD / LHD Concrete Mixer Truck EURO 3/5 Heavy Duty 10-12m3

Beiben 2534 RHD /LHD Concrete Mixer Truck EURO 3/5 Heavy Duty 10-12m3

8~12m3 Transit Mixers concrete mixer truck Chassis parameters
Chassis model ND1254B38J Chassis brand North-Benz
Overall dimensions 8065x2495x3130mm Wheel base 3800+1450 mm
Front/rear wheel track 1995/1800/1800mm Front/rear suspension 1410/1405 mm
Approach/departure angle 26/35° Maximum speed 85km/h
Chassis Manufacturer BEIBEN TRUCK
Cab Configuration NG80B a row and a half(with sleeping berth),allowable 3 passengers,air conditioner
Color White,other color is optional
Engine Model WP10.340E32
Emission Euro 3
Type 6 cylinders,in-line,water-cooled,4-stroke,turbo inter-cooling, direct injection,exhaust valve brake,diesel engine
Rated power 340hp,rated power speed 2200rpm
Displacement 9726ml
Max.torque 1250N.m
Bore x stroke 126x155mm
Manufacturer Weichai Power Co.,Ltd
Tire Size 12.00R20 steel wire tire
Number 10+1 nos
Clutch φ430 diaphragm clutch
Fuel tank 300L aluminum alloy
Front axle 7.5 tons
Rear axle 13.0 tons
Drive form 6X4
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Gearbox 9T1680,9 speed forward 1 reverse
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard
Concrete Mixer Truck structure parameters
Loading capacity 12m3 Tank material 6mm alloy steel
Tank front head 8mm alloy steel Reducer Germany ZF7300
Hydraulic pump Germany REXROTH Hydraulic motor Germany REXROTH
Radiator KAIPENG Color and Logo Optional
Standard configuration chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
Germany ZF7300 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 6mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material)
Selective configuration Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system.
Italy Bonfiglioli/Italy PMP reducer,Italy PMP/Italy MESSOR/America EATON/America SAUER hydraulic pump,Italy PMP/America EATON/America SAUER hydraulic motor.

Overall dimensions 9300X2500X3900mm Curb weight 13650kg
Loading capacity 12m3 Customization, Cost Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675
4x2, 4x4, 6x4, 6x6, 8x4 Concrete Mixer Truck for your selection, LHD and RHD cabin are both available.

concrete mixer truck
Beiben 2535 Mixer trucks Beiben Concrete Mixer Truck Beiben Cement Mixer Suppliers 2529, 2534, 2539, 2542, 2634, 2638, 2642, Beiben, Beiben-Trucks, Beiben-Trucks
Emission Standards EURO3

- Emission Standards EURO4

mainly by the undercarriage, the mixing tube, transmission (drive), hydraulic drive system, water system, installed (into) materials and material unloading system, discharge chute, platform, control systems and protective equipment.

Cement mixer truck is used to transport concrete. Such devices are on the truck cylindrical mixing tube to carry the concrete after mixing. During transport always kept stirring drum rotation to ensure that concrete does not carry solidification. After the delivery of finished concrete, usually rinsed with water inside the mixing tube to prevent hardening of concrete space, so that the volume of the mixing tube is less and less.

Shipment option

CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container

truck mounted concrete mixer

concrete mixer pump truck

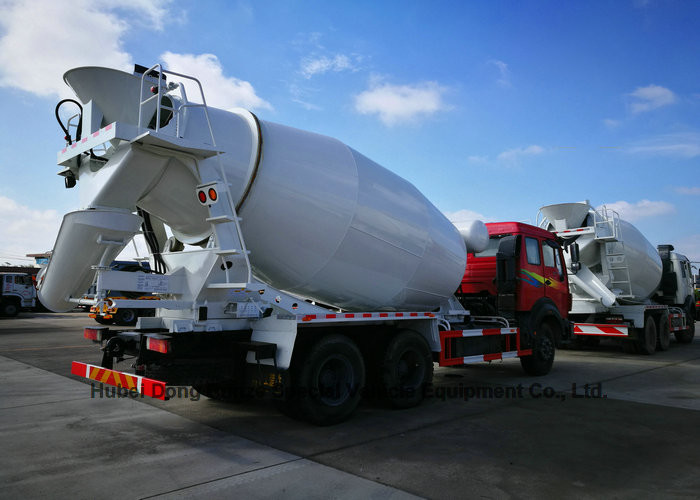

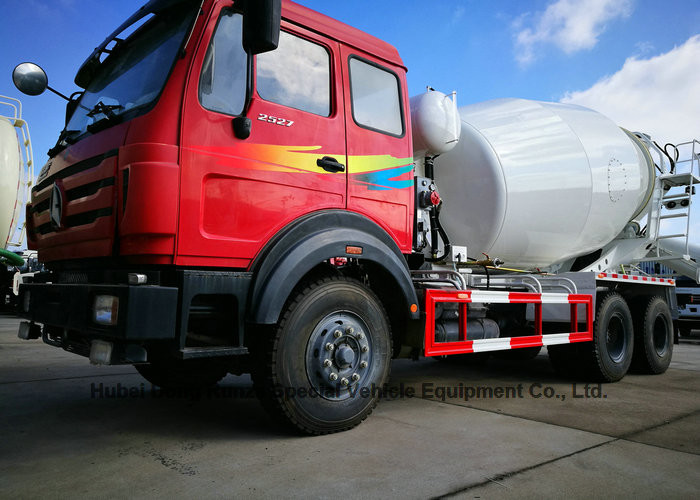

Beiben 2534 RHD / LHD Concrete Mixer Truck EURO 3/5 Heavy Duty 10-12m3 Images
