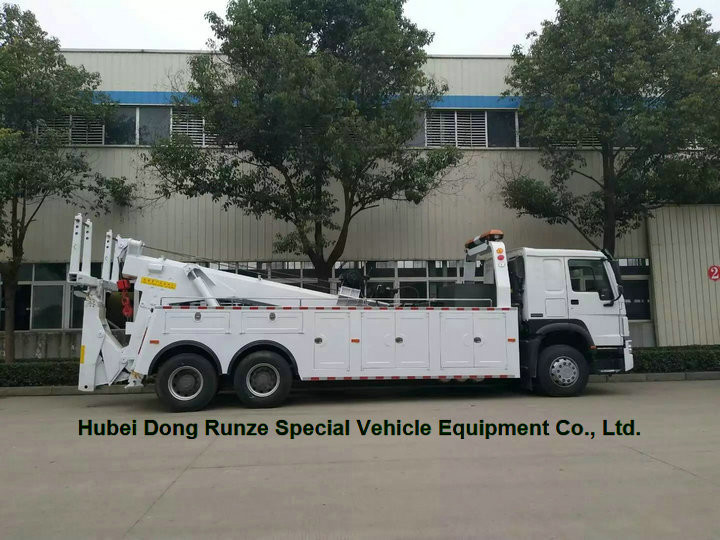

HOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree Rotation

Product Categories
Hubei Dong Runze Special Vehicle Equipment Co., Ltd
Contact Now

HOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree Rotation

Brand Name : Dong Run Ze

Model Number : OEM

Certification : C3

Place of Origin : Hubei ,China

MOQ : 1 Unit Call /WhatsApp:+8615271357675

Price : Negotiated at Weichat:King253725877

Payment Terms : TT emial to <253725877@qq.com>

Supply Ability : Ask us for Better Price <253725877@qq.com>

Delivery Time : 25 working days

Packaging Details : Some Body Part By containers , Truck by Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. please emial to

Good for : Towing truck, road recovery

Certificate of Origin : China CO /Favour/ACFTA/ Form E

Import Tax : 0%-20%

HS-Code : 8705909990

Cell : 8615271357675

Cabin : with A/C

Color : Optional Color /Logo

Key Parts : PTO, Hydraulic winch 40m,Boom .crane

Name : Recovery Truck, HOWO Wrecker, HOWO Tow Truck

Drive Type : Right Hand Drive, or Left Hand Drive.

downloHydraulic winch : 2*10 Tons, 20 Ton, 2X25t, 30 Tons, 40 Tons, 50 Ton

Enigne Horse Power : 266HP, 290HP, 336HP, 371HP.

Lifting Weight : 20tons, 30tons, 40tons, 50tons, 60tons etc

Contact Now

HOWO 50ton Road Wrecker Tow Trucks 2*25ton Heavy Duty Road Wrecker 360 Degree Rotation

Items Unit Value
Lifting Structure Rated Lifting weight kg 7295
Max. Lifting weight of original place kg 14000
Max. Lifting weight of full extension boom kg 4000
Rated towing weight kg 25000
Max. Designed towing weight kg 60000
Effective length of boom mm 3300
Extension traveling of boom mm 1700
Folding angle of boom ° 90
Under lift Structure Max. Rated hanging weight kg 12000
The height from hook to the ground mm 5290
Extension traveling of lifting boom mm 2800
Numbers of winch piece 2
Rated pulling power of winch kg 10000×2
Dia. Of steel cable mm 18
Length of steel cable m 40
Min. Speed of steel cable m/min 7
Rotation angle ° 30
Vehicle
Parameters		 External dimension mm 10370×2496×3160
Chassis model ZZ1257M5847C
Axle base mm 5825+1350
Drive 6×4
The whole weight of empty load kg 17575
Load of front axle of empty load kg 7405
Load of rear axle of empty load kg 10170
The whole weight of full load kg 25000
Load of front axle of full load kg 7000
Load of rear axle of full load kg 18000
Wheel base (front/rear axle) mm 2022/1830
Front suspension mm 1500
Rear suspension mm 1096
Approach angle º 12
Departure angle º 13
Min. Ground clearance mm 260
Min. Turning diameter m ≤24
Grade ability % ≥30
Max. Speed km/h 90
Engine model - WD615.93
Engine emission L 9.726
Rated power kw/r/min 213/2200
Max. Torque n·m/r/min 1160/1300-1600
Fuel type Diesel
Standard of emission EN III
Tire size 11.00-20,11.00R20
12.00-20,12.00R20
Persons 2

HOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree Rotation50t Sinotruk HOWO Truck 6X4 Road WreckerHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree Rotation

HOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree RotationHOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree Rotation


6X4 HOWO Road Tow Wrecker, Towing Wrecker EURO 5 Technical parameter:

Dimension(mm) 10455×2520×3120
Chassis model ZZ1257M5847E1
Driving type 6×4
Wheel base(mm) 5825+1350,5800+1400,
5225+1350,5200+1400
Curb weight(kg) 20020
Gross weight(kg) 25000
Chassis weight(kg) 9560
front overhang(mm) 1500
rear overhang(mm) 1780
approach angle(°) 14
departure angle(°) 16
Max speed (km/h) 102
Max. slope of climb(%) ≥30
Min.turning diameter(m) ≤23.8
Min.ground clearance(mm) ≥263
Engine model D10.34-50
D10.38-50
D10.28-50
D10.31-50
Rated power(kw) 249
276
206
228
Displacement(ML) 9726
9726
9726
9726
Max torque(N·m/r/min) 2000/1200-1500
Fuel type Diesel
Emission standard GB17691-2005,GB3847-2005
Tyre size 315/80R22.5
18PR/315/80R22.5
14PR,295/80R22.5
18PR/295/80R22.5
16PR,12R22.5
18PR/12R22.5
16PR,12.00R20
16PR/12.00R20
14PR,11.00R20
18PR/11.00R20
16PR,12.00-20
16PR,11.00-20
Persons in cab 2,3
Max lifting weight(kg) 20000
Max lifting height(mm) 5600
Stretch distance(mm) 3300
Winch Qty(pc) 2
Max.Pulling power of winch(kg) 10000×2
Steel wire Dia(mm) 18
Steel wire length(m) 45
Min.speed of steel wire(m/min) 7
change-angle(°) 10-34
Max.Lifting weight(kg) 20000
Max.Lifting weight of full extanding boom(kg) 5000
Max.Rated towing weight(kg) 25000
Max designed towing weight(kg) 50000
Effective length of boom(mm) 3675
Stretch distance(mm) 1850
Folded angle(°) 97
Working minus angle(°) -7

16T18D2 Two 100KN hydraulic winch 40m

Rating Towing Mass 25000 Kg~31000KG

Boom Max lifting capacity: 18T
Max Extended lifting capacity: 8T
Max. Lifting Height mm 6500
Under lift Original Lifting Mass Kg 6500 / 7470 / 10120
Rating Lifting Mass Fully Extended Kg 5500/7310

Optional :

1. 12T hydraulic clamp level price add $ 5000USD

2. Electric saw price add $ 2000

3. searchlight, 400W-2 rats with motor price add $ 2000

All cab with air conditioning USD FOB CHINA SHANGHAI PORT price list for refer only.

T Chassis cab Engine Front axle Gear box Rear axles tire Wheel base Drive USD FOB Price refer
16T ZZ1317N4667D1H HW76 D10.34-40 HF9 HW19710 HC16 12.00R2011.00R20 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 8×4 $91600
D10.38-40 $92600
D12.34-40 $93600
25T D12.38-40 $96800
HW79 D10.34-40 $95500
D10.38-40 $96000
32T D12.34-40 $123900
D12.38-40 $125500
16T ZZ1257M5847D1 HW76 D10.31-40 HF9 HW15710 HC16 12.00R20 5825+1350,5800+1400 6×4 $87100
HW79 $87800

40-

60T

 ZZ5507N31B7D1 HW76 D10.38-40 HF9 HW19710 HC16 12.00R20 1950+3075+1375+1350,1950+4575+1375+1350 10×4 $138400
D12.38-40 $139900
D12.42-40 $140500
25T ZZ1317N4667D1H HW76 D10.34-40 HF9 HW19710 HC16 12.00R2011.00R20 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 8×4 $94800
D10.38-40 $95300
D12.34-40 $96800
32T D12.38-40 $122600
HW79 D10.34-40 $122600
D10.38-40 $123100
40T D12.34-40 $1366300
D12.38-40 $1386300
16T ZZ1257N5847D1 HW76 D10.34-40 HF9 HW19710 HC16 12.00R2011.00R20 5825+1350,5800+1400 6×4 $83800
D10.38-40 $85000
D12.34-40 $88000
D12.38-40 $90000
HW79 D10.34-40 $84000
D10.38-40 $87300
D12.34-40 $88800
D12.38-40 $90800
32T ZZ1317N4667D1H HW76 D10.34-40 HF9 HW19710 HC16 12.00R2011.00R20 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 8×4 $121900
D10.38-40 $122400
D12.34-40 $139600
D12.38-40 $141600
HW79 D10.34-40 $122600
D10.38-40 $123100
D12.34-40 $124600
D12.38-40

Shipment option

CBU terms should be chosen for such tanker shipment. By bulk ship, or RORO car carrier ship. some by Flat /Frame container

applyed Certificate of Origin (Form E) issued by HUBEI ENTRY-EXIT INSPECTION AND QUARANTINE BUREAU for costumer pay 0 import Tax.

HOWO 50 Ton Heavy Duty Rotator Wreckers Tow Truck With 360 Degree Rotation
